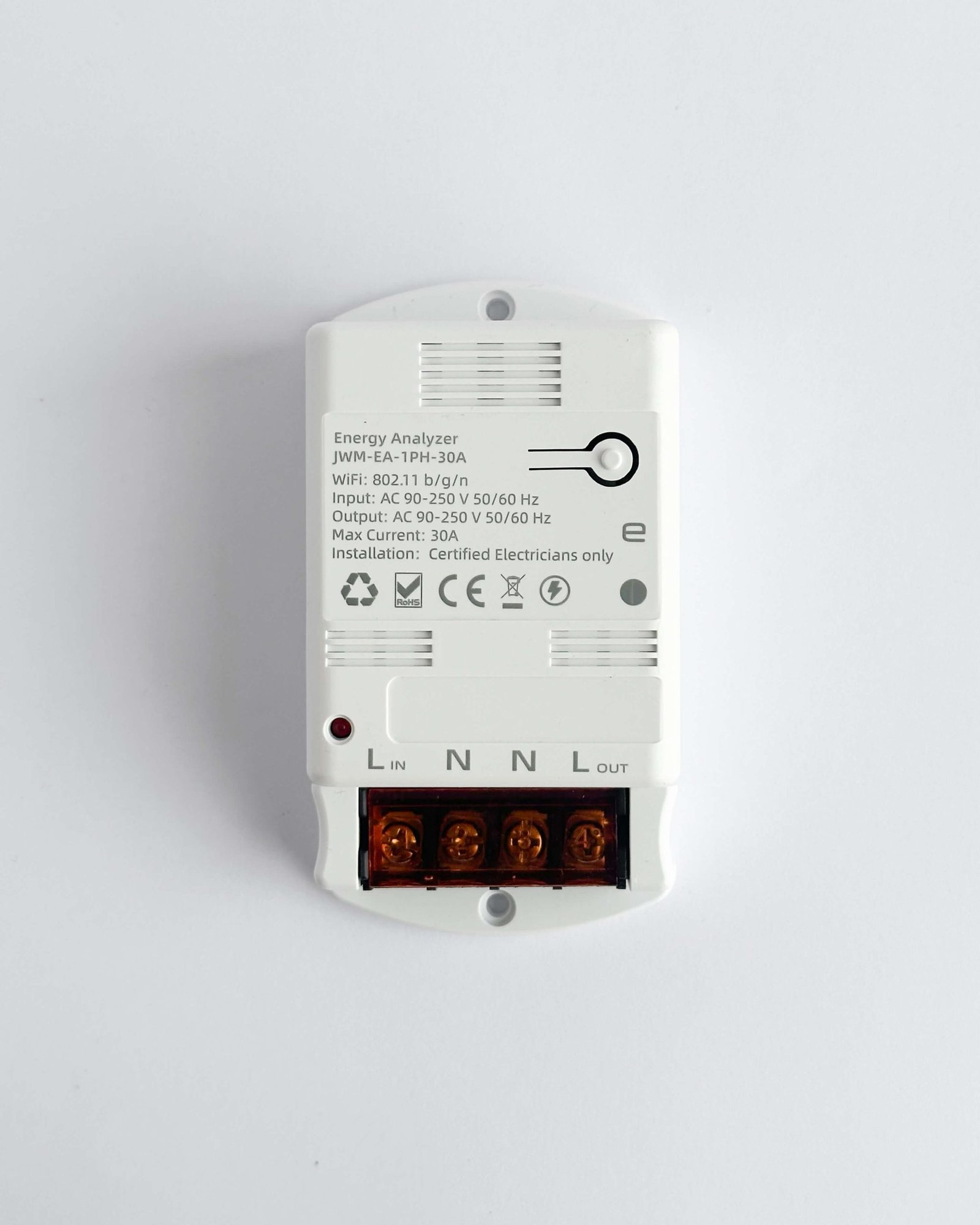

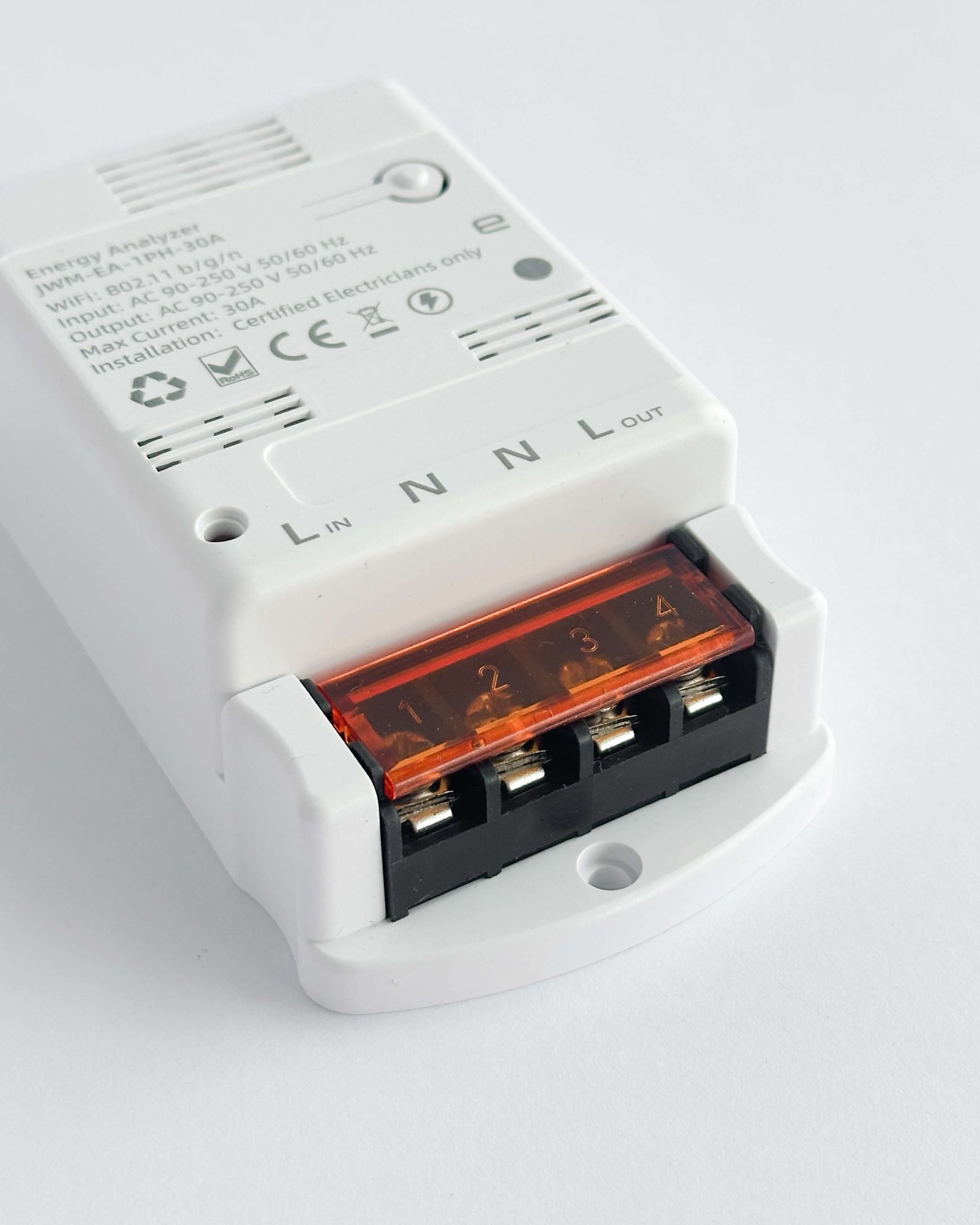

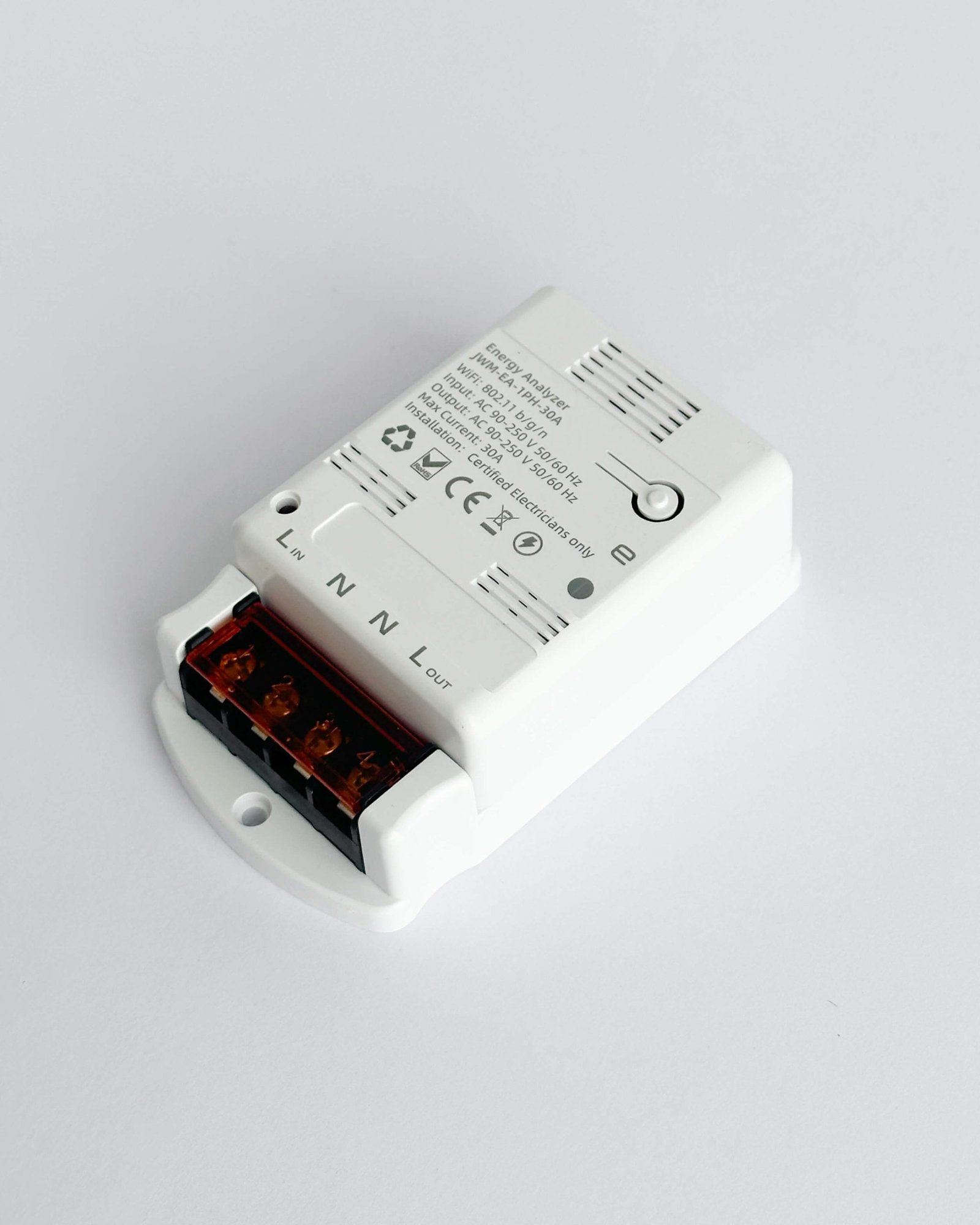

Energy Analyzer – JWM-EA-1PH-30A
Original price was: ₨ 9,350.₨ 7,480Current price is: ₨ 7,480.
Single-phase energy analyzer, 30A, Wi-Fi monitoring.
5
Items sold in last 3 minutes
10 in stock
Description

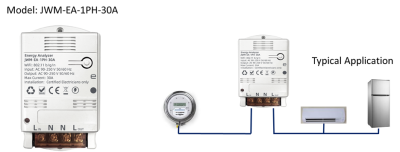

Model JWM-EA-1PH-30A is a single phase metering device that is designed to measure power and energy for a premises next to a single phase meter. It helps its users to have the ability to monitor and store their energy consumption, and power parameters such as voltage and current. This information can be used by its owner to plan their electricity usage in an informed manner.
Technical Specifications
| Model | JWM-EA-1PH-30A |
| Load Side Input (LIN) | |
| Voltage Range (VAC) | 90-250 |
| Frequency (Hz) | 50/60 |
| Maximum Current (A) | 30 |
| Maximum Power (VA) | 5000 |
| Load Side Output (LOUT) | |
| Voltage Range (VAC) | 90-250 |
| Frequency (Hz) | 50/60 |
| Maximum Current (A) | 30 |
| Maximum Power (Watts) | 5000 |
| Interface | |
| Power Monitoring | Yes (Wi-Fi) |
| Energy Monitoring | Yes (Wi-Fi) |
| Wi-Fi Version | IEEE 802.11 (b/g/n) (2.4 GHz) |
