Load Management Switch – JWM-1P-1S-MSQ-16A
Original price was: ₨ 4,500.₨ 3,600Current price is: ₨ 3,600.
Compact load management switch, 16A, Wi-Fi controlled.
5
Items sold in last 3 minutes
10 in stock
Description

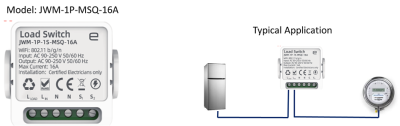

Model JWM-1P-1S-MSQ-16A is a one port switch meaning it controls one load only. One typical application is shown below where a refrigerator is being controlled to operate in a prescribed manner using an Android App. Other loads up to 16 Ampere of current, e.g., 1200 BTU air conditioner, can also be switched using this device and have similar features of predefined operational behaviour. Smaller size allows this load control switch to be used within or next to a load control box or panel.
Technical Specifications
| Model | JWM-1P-1S-MSQ-16A |
| AC Input | |
| Voltage Range (VAC) | 90-250 |
| Frequency (Hz) | 50/60 |
| Maximum Current (A) | 16 |
| Maximum Power (Watts) | 1800 |
| AC Output | |
| Voltage Range (VAC) | 90-250 |
| Frequency (Hz) | 50/60 |
| Maximum Current (A) | 16 |
| Maximum Power (Watts) | 1800 |
| Switch Time (ms) | 10 |
| Operational Modes | |
| Mode-1 | Manual Load Switching Control |
| Mode-2 | App Based Load Switching Control |
| Interface | |
| Wi-Fi | 802.11 (b/g/n) (2.4 GHz) |
