Load Management Switch – JWM-1P-2S-30A
Original price was: ₨ 15,000.₨ 12,000Current price is: ₨ 12,000.
Dual-source load management switch, 30A, Wi-Fi controlled.
4
Items sold in last 3 minutes
10 in stock
Description

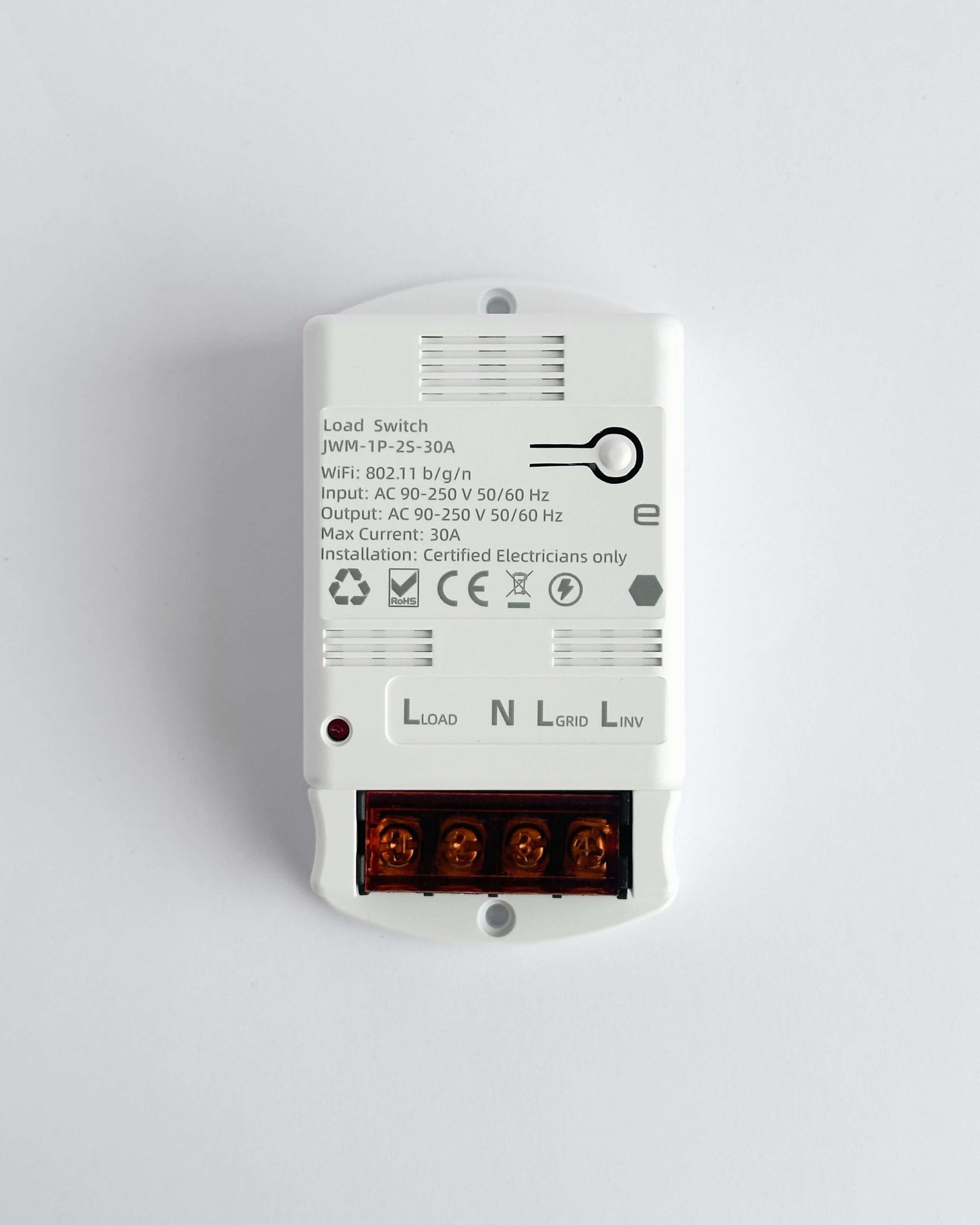

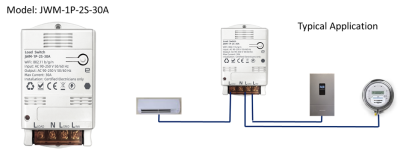

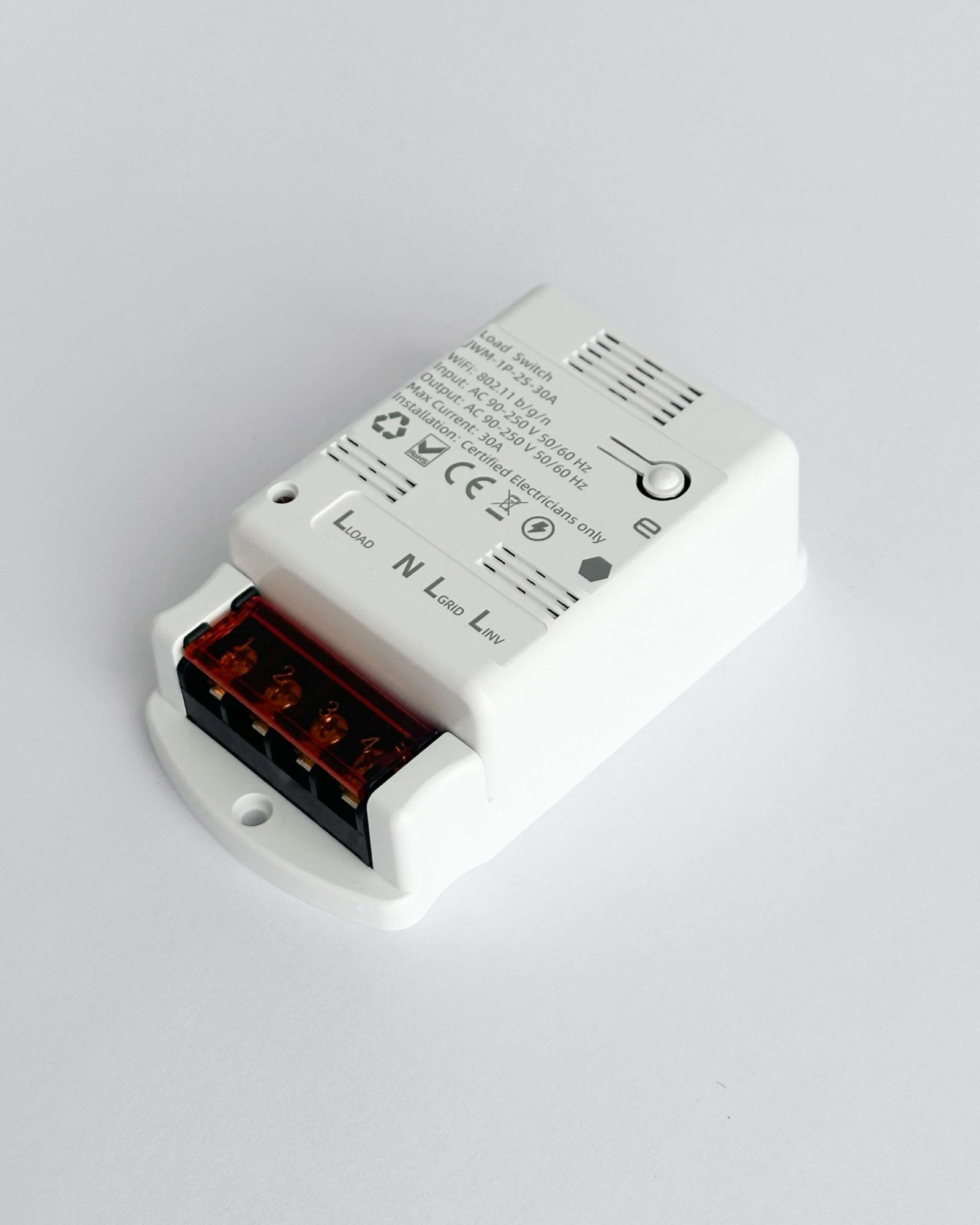

Model JWM-1P-2S-30A Load switch is designed to provide any load the ability to choose between two power source to operate from an Android App. It is a one port switch meaning it controls one load only, in addition to choosing between power sources. One typical application is shown below where two power sources are chosen to be Grid and an Inverter.
Technical Specifications
| Model | JWM-1P-2S-30A |
| AC Input-1 | |
| Voltage Range (VAC) | 90-250 |
| Frequency (Hz) | 50/60 |
| Maximum Current (A) | 30 |
| Maximum Power (Watts) | 3000 |
| AC Input-2 | |
| Voltage Range (VAC) | 90-250 |
| Frequency (Hz) | 50/60 |
| Maximum Current (A) | 30 |
| Maximum Power (Watts) | 3000 |
| AC Output | |
| Voltage Range (VAC) | 90-250 |
| Frequency (Hz) | 50/60 |
| Maximum Current (A) | 30 |
| Maximum Power (Watts) | 3000 |
| Switch Time (ms) | 10 |
| Operational Modes | |
| Mode-1 | Manual Switching |
| Mode-2 | App based Switching |
| Interface | |
| Wi-Fi | 802.11 (b/g/n) (2.4 GHz) |
