Load Management Switch – JWM-1P-3PIN-16A
Original price was: ₨ 6,000.₨ 4,800Current price is: ₨ 4,800.

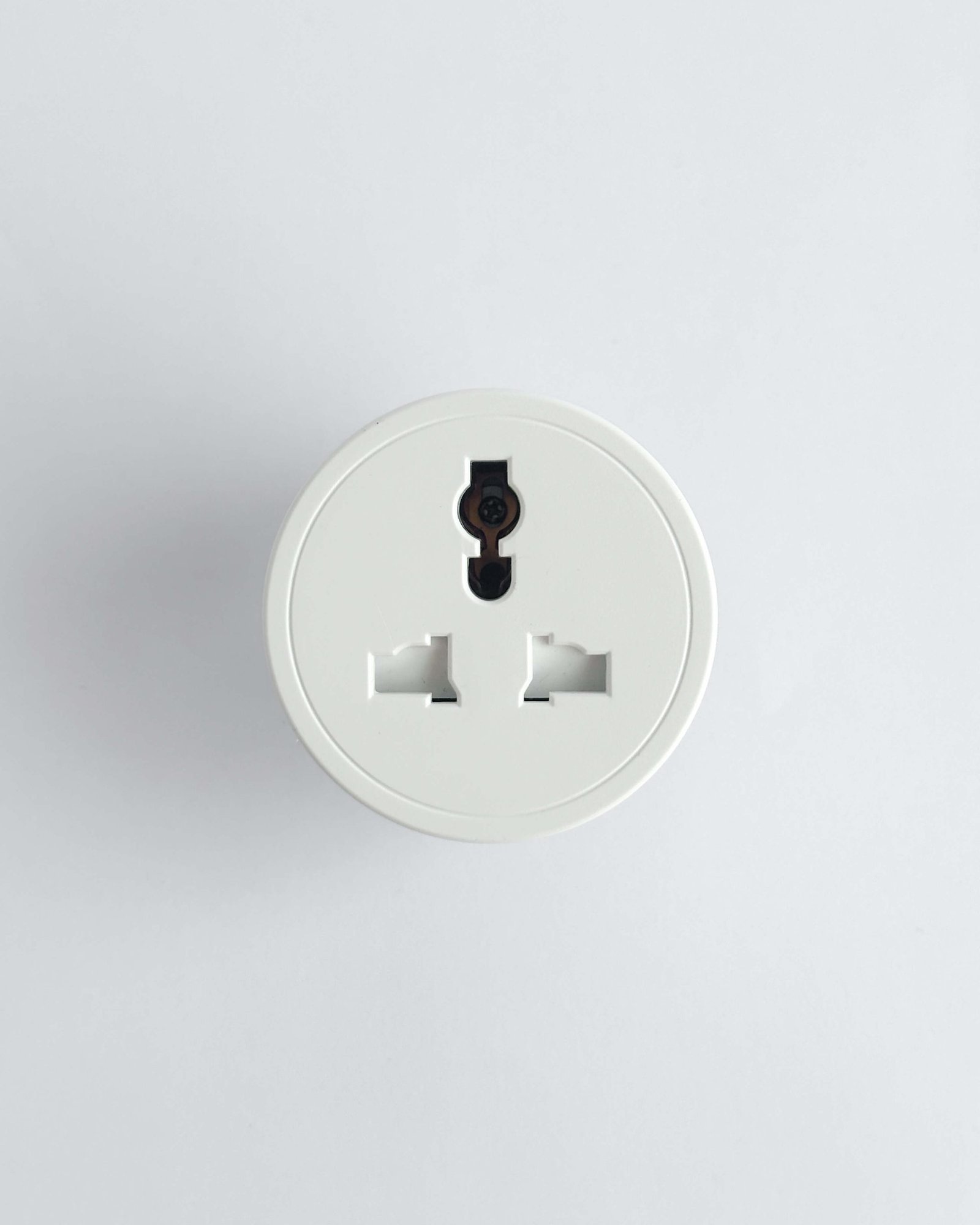

Plug-type load management switch, 16A, Wi-Fi controlled.
1
Item sold in last 3 minutes
9 in stock
Description
Model JWM-1P-3PIN-16A Load switch is a one port switch meaning it controls one load only. It is packaged as a power plug to facilitate its use in any power plug. One typical application is shown below where a small air conditioner can be controlled either manually using the switch on the plug or using an Android App. Other loads up to 16 Ampere of current can be switched using this device. For example, a 12000 BTU air conditioner could also be controlled using this power plug.
Technical Specifications
| Model | JWM-1P-3PIN-16A |
| AC Input | |
| Voltage Range (VAC) | 90-250 |
| Frequency (Hz) | 50/60 |
| Maximum Current (A) | 16 |
| Maximum Power (Watts) | 1800 |
| AC Output | |
| Voltage Range (VAC) | 90-250 |
| Frequency (Hz) | 50/60 |
| Maximum Current (A) | 16 |
| Maximum Power (Watts) | 1800 |
| Switch Time (ms) | 10 |
| Operational Modes | |
| Mode-1 | Manual Load Switching Control |
| Mode-2 | App Based Load Switching Control |
| Interface | |
| Wi-Fi | IEEE 802.11 (b/g/n) (2.4 GHz) |
