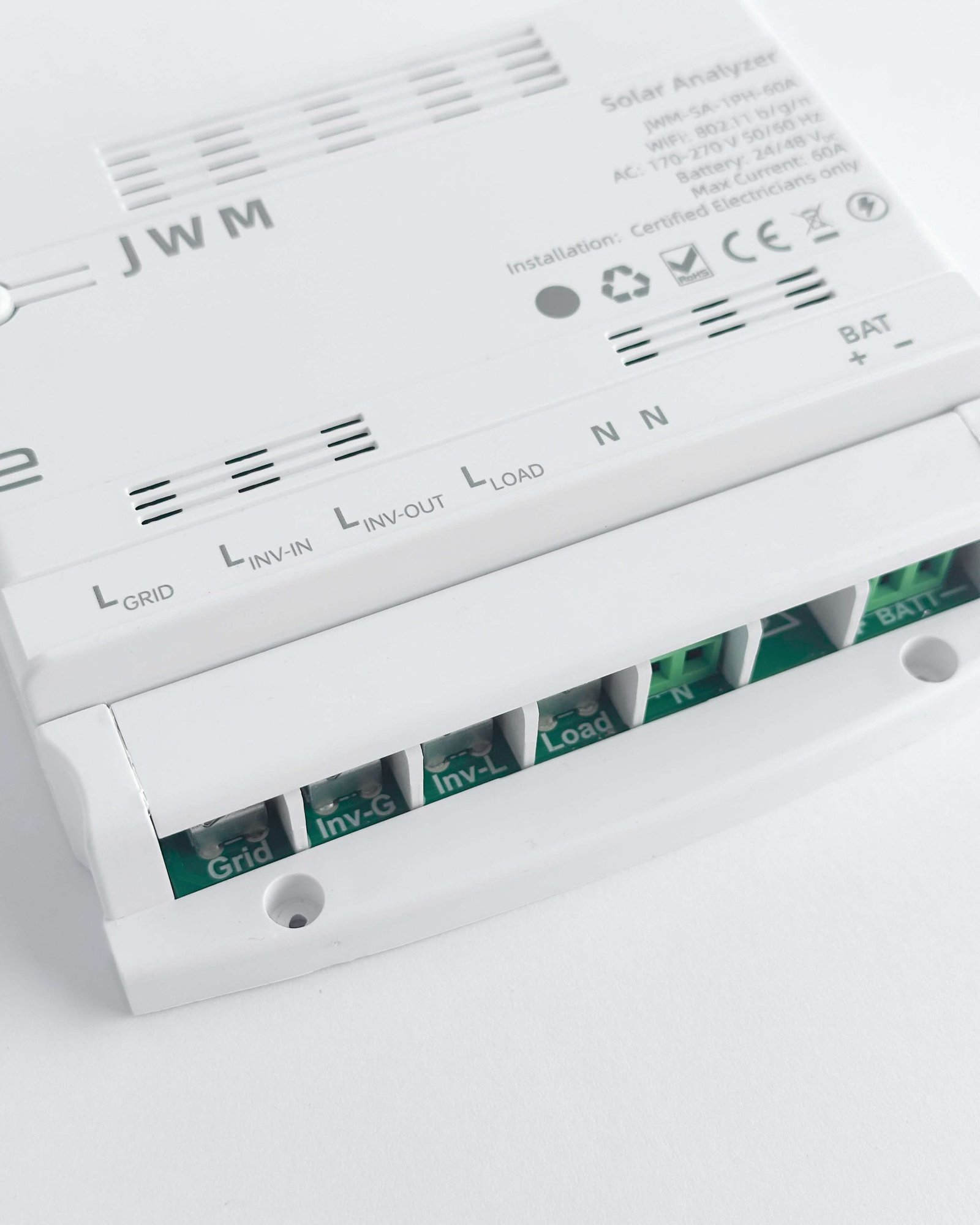

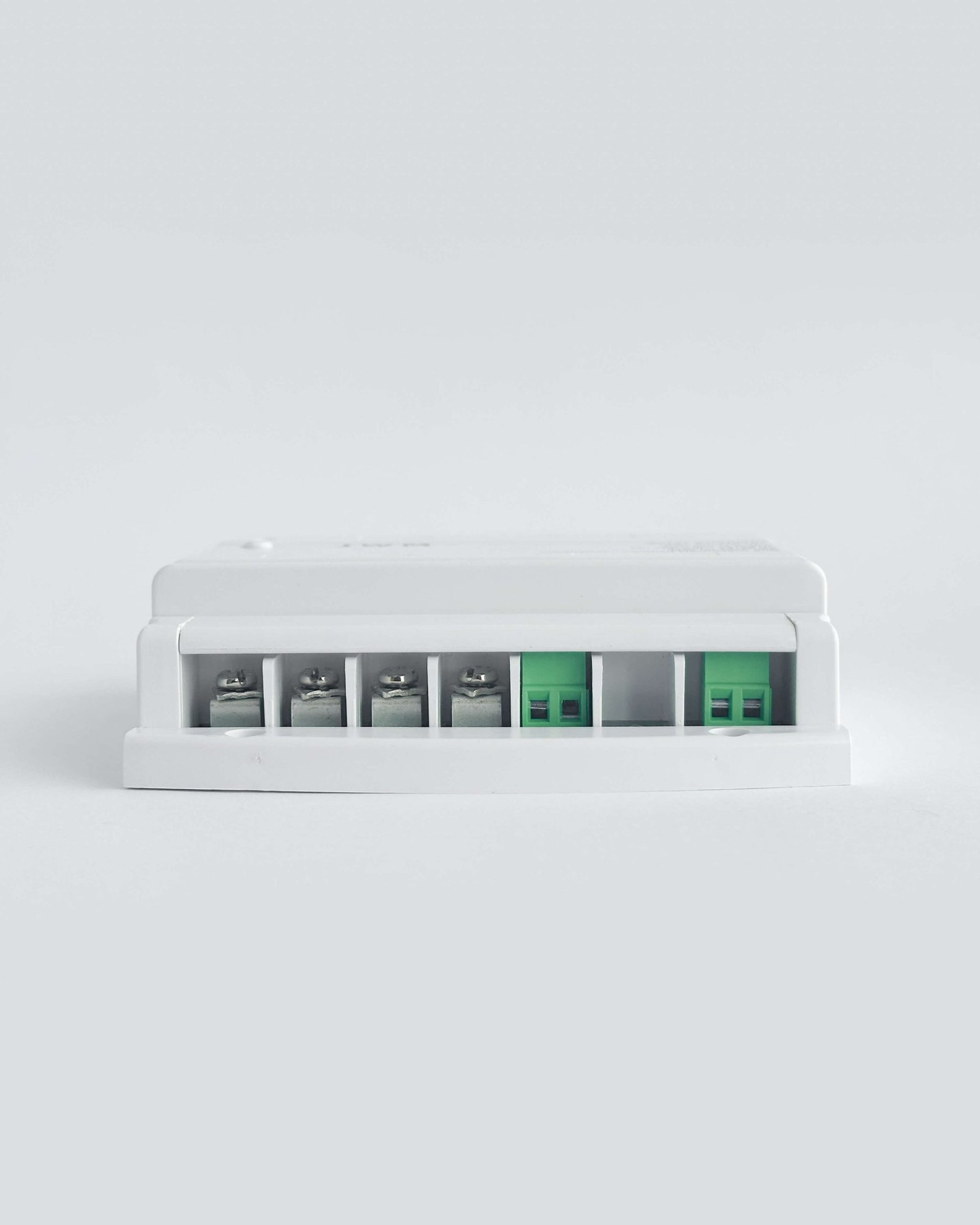

Solar Analyzer – JWM-SA-1PH-60A
Original price was: ₨ 19,000.₨ 15,200Current price is: ₨ 15,200.
Single-phase solar analyzer, 60A, Wi-Fi monitoring.
9 in stock

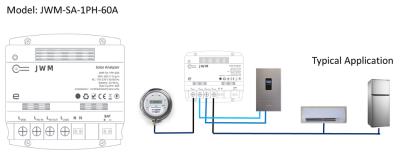

Model JWM-SA-1PH-60A is essentially a single phase metering device. It is, however, designed for a specific use next to a solar inverter to measure its Grid input and Load output power and energy as shown below. It helps its users to have the ability to monitor the power and energy consumption, parameters such as voltage and current in addition to an indirect estimate of the solar power being generated by the solar inverter. This device is typically used with those solar inverter models that do not provide this power monitoring ability inbuilt in them. This information can be used by its owner to plan their electricity usage in an informed manner.
Technical Specifications
| Model | JWM-SA-1PH-60A |
| Load Side Input (L1, L2, L3) | |
| Voltage Range (VAC) | 90-250 |
| Frequency (Hz) | 50/60 |
| Maximum Current (A) | 30 |
| Maximum Power (VA) | 5000 |
| Load Side Output (L1’, L2’, L3’) | |
| Voltage Range (VAC) | 90-250 |
| Frequency (Hz) | 50/60 |
| Maximum Current (A) | 30 |
| Maximum Power (Watts) | 5000 |
| Interface | |
| Power Monitoring | Yes (Wi-Fi) |
| Energy Monitoring | Yes (Wi-Fi) |
| Wi-Fi Version | IEEE 802.11 (b/g/n) (2.4 GHz) |
